SKF NCF 1896 V

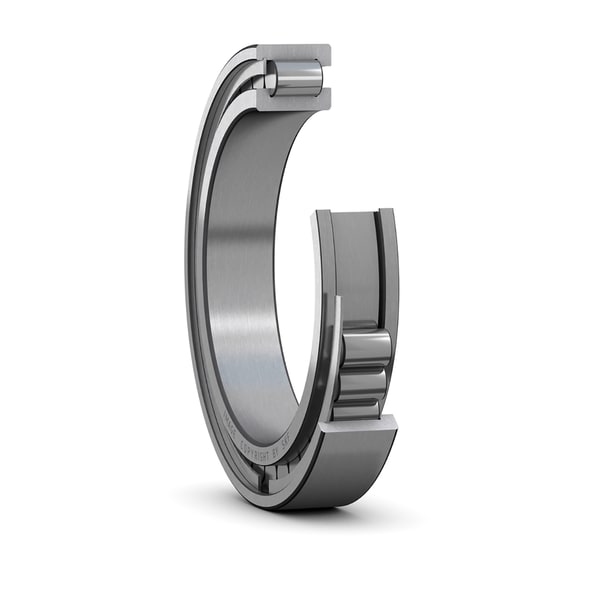

Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
480.0 mm
Bore diameter
D
600.0 mm
Outside diameter
B
56.0 mm
Width
d1
522.0 mm
Shoulder diameter inner ring
D1
561.0 mm
Shoulder diameter outer ring
E
573.5 mm
Raceway diameter outer ring
s
5.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
3.0 mm
Chamfer dimension
mass
34.3 kg
Product net weight
