SKF NCF 2892 V/HB1

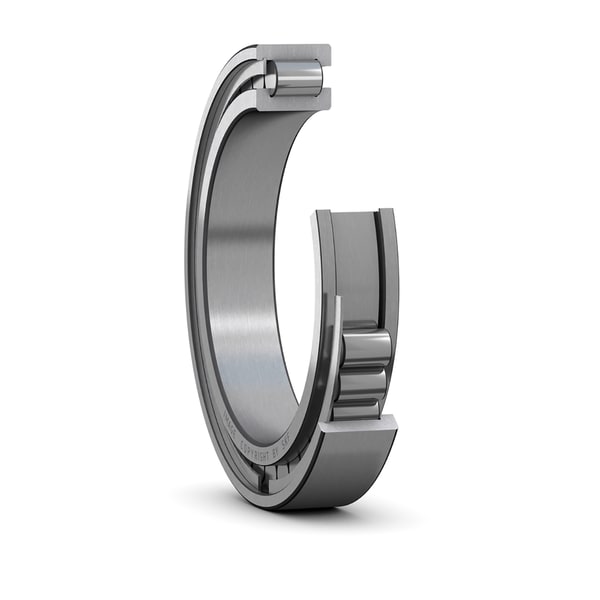

Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
460.0 mm
Bore diameter
D
580.0 mm
Outside diameter
B
72.0 mm
Width
d1
501.0 mm
Shoulder diameter inner ring
D1
543.0 mm
Shoulder diameter outer ring
E
553.0 mm
Raceway diameter outer ring
s
5.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
3.0 mm
Chamfer dimension
mass
44.0 kg
Product net weight
