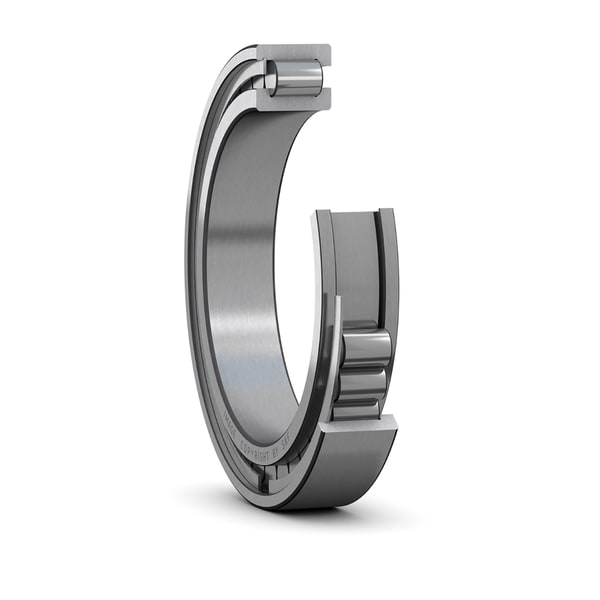

SKF NCF 29/630 V
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
630.0 mm
Bore diameter
D
850.0 mm
Outside diameter
B
128.0 mm
Width
d1
709.0 mm
Shoulder diameter inner ring
D1
788.0 mm
Shoulder diameter outer ring
E
807.0 mm
Raceway diameter outer ring
s
8.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
6.0 mm
Chamfer dimension
mass
215.0 kg
Product net weight
