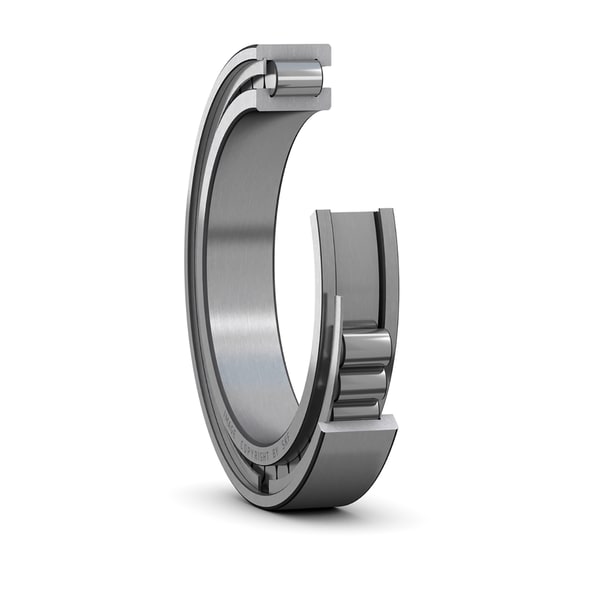

SKF NCF 2914 CV
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
19.0 mm
Width
d1
80.5 mm
Shoulder diameter inner ring
D1
88.5 mm
Shoulder diameter outer ring
E
92.5 mm
Raceway diameter outer ring
s
1.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
0.475 kg
Product net weight
