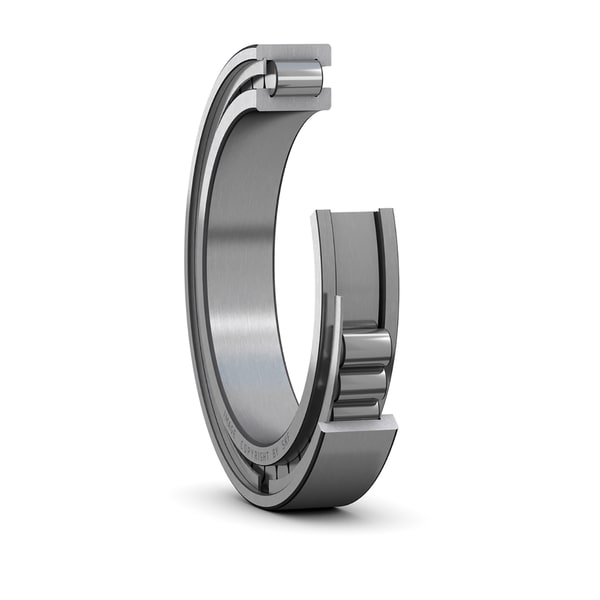

SKF NCF 2952 CV
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
260.0 mm
Bore diameter
D
360.0 mm
Outside diameter
B
60.0 mm
Width
d1
291.0 mm
Shoulder diameter inner ring
D1
323.0 mm
Shoulder diameter outer ring
E
333.7 mm
Raceway diameter outer ring
s
3.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
2.1 mm
Chamfer dimension
r3,4
1.5 mm
Chamfer dimension
mass
18.2 kg
Product net weight
