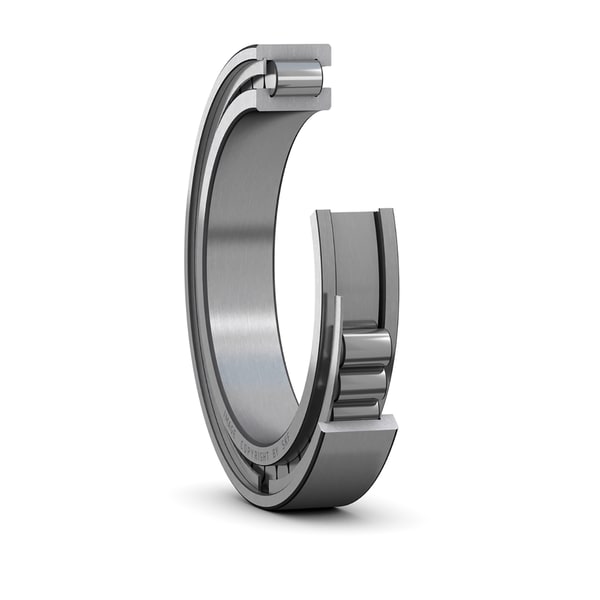

SKF NCF 2968 V
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
340.0 mm
Bore diameter
D
460.0 mm
Outside diameter
B
72.0 mm
Width
d1
378.5 mm
Shoulder diameter inner ring
D1
421.0 mm
Shoulder diameter outer ring
E
431.0 mm
Raceway diameter outer ring
s
5.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
3.0 mm
Chamfer dimension
mass
34.9 kg
Product net weight
