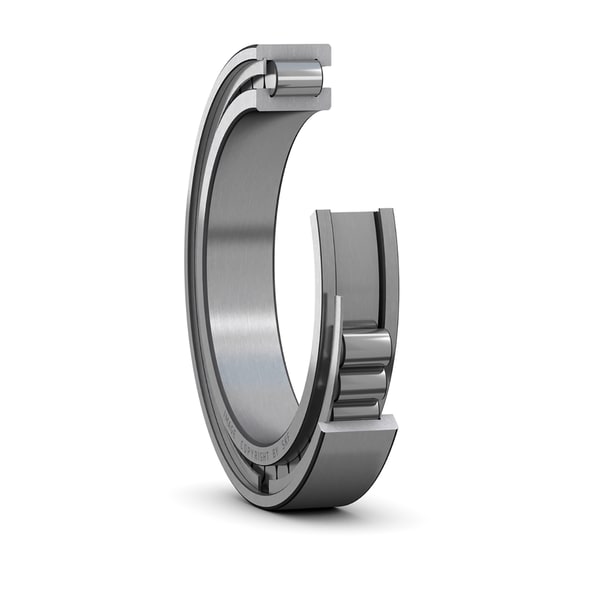

SKF NCF 2992 V
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
460.0 mm
Bore diameter
D
620.0 mm
Outside diameter
B
95.0 mm
Width
d1
516.0 mm
Shoulder diameter inner ring
D1
558.0 mm
Shoulder diameter outer ring
E
579.0 mm
Raceway diameter outer ring
s
6.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
4.0 mm
Chamfer dimension
mass
83.0 kg
Product net weight
