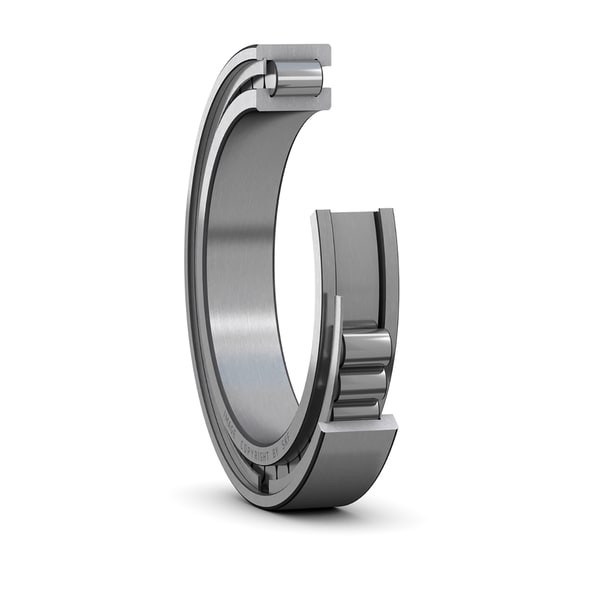

SKF NCF 3007 CV
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
20.0 mm
Width
d1
45.0 mm
Shoulder diameter inner ring
D1
51.0 mm
Shoulder diameter outer ring
E
55.52 mm
Raceway diameter outer ring
s
2.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
1.0 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.258 kg
Product net weight
