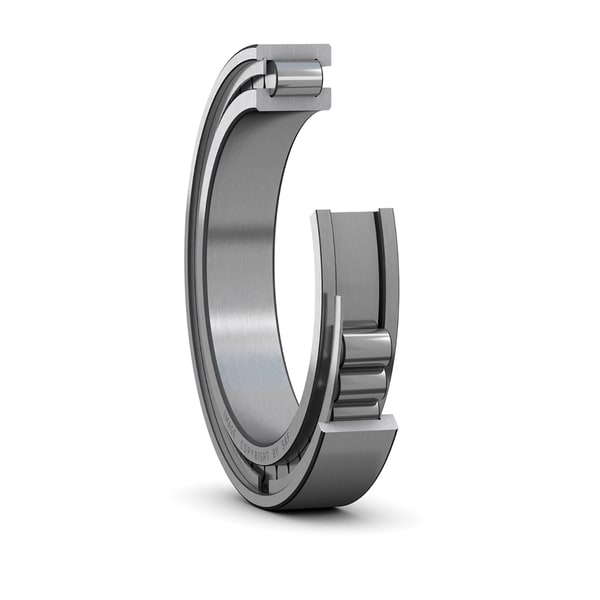

SKF NCF 3011 CV/C3
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
Bore diameter
d
55.0 mm
Outside diameter
D
90.0 mm
Width
B
26.0 mm
Shoulder diameter inner ring
d1
68.0 mm
Shoulder diameter outer ring
D1
79.0 mm
Raceway diameter outer ring
E
83.54 mm
Raceway diameter inner ring
F
63.54 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
s
2.0 mm
Chamfer dimension
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
mass
0.634 kg
Product net weight
