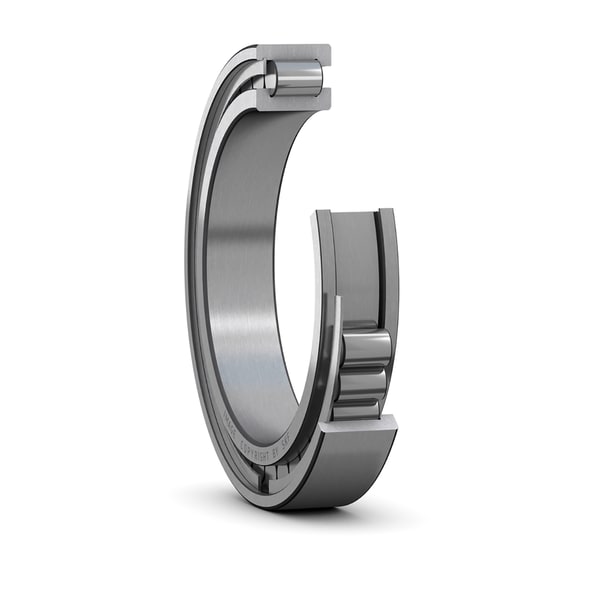

SKF NCF 3016 CV
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
125.0 mm
Outside diameter
B
34.0 mm
Width
d1
95.0 mm
Shoulder diameter inner ring
D1
111.0 mm
Shoulder diameter outer ring
E
116.99 mm
Raceway diameter outer ring
s
4.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
