SKF NCF 3064 CV

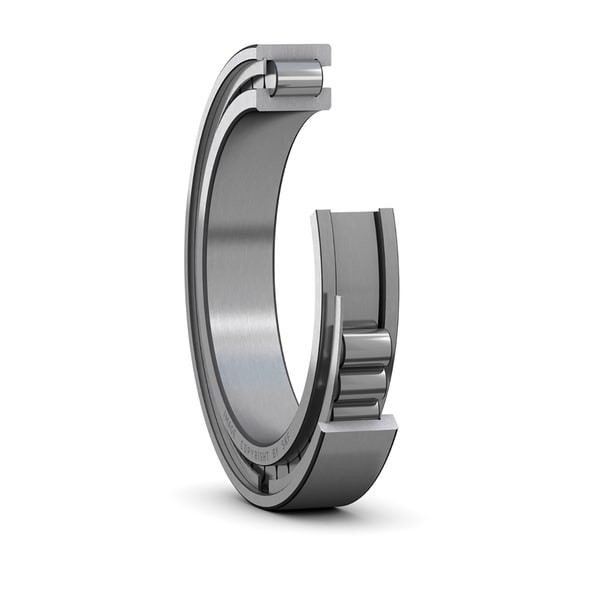

Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
320.0 mm
Bore diameter
D
480.0 mm
Outside diameter
B
121.0 mm
Width
d1
368.0 mm
Shoulder diameter inner ring
D1
434.0 mm
Shoulder diameter outer ring
E
449.5 mm
Raceway diameter outer ring
s
14.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
4.0 mm
Chamfer dimension
