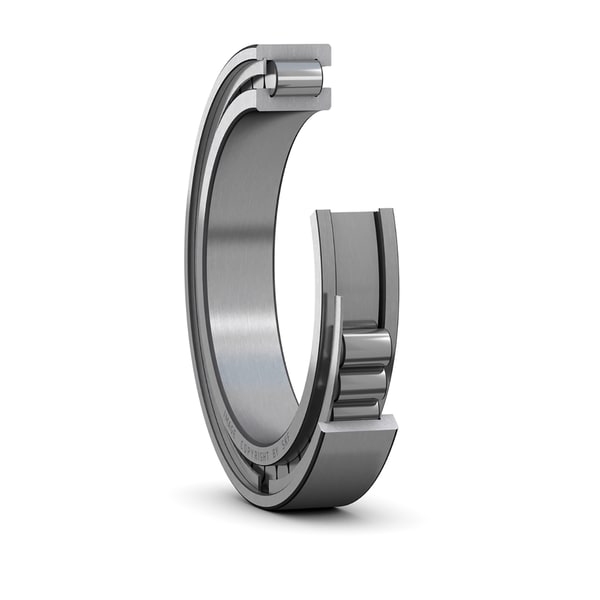

SKF NCF 3072 CV
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
360.0 mm
Bore diameter
D
540.0 mm
Outside diameter
B
134.0 mm
Width
d1
412.0 mm
Shoulder diameter inner ring
D1
486.0 mm
Shoulder diameter outer ring
E
503.45 mm
Raceway diameter outer ring
s
14.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
5.0 mm
Chamfer dimension
