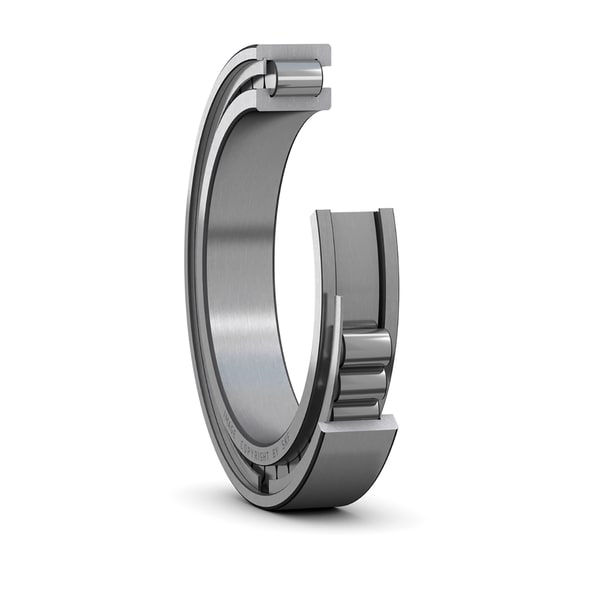

SKF NCF 3076 V
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
380.0 mm
Bore diameter
D
560.0 mm
Outside diameter
B
135.0 mm
Width
d1
431.0 mm
Shoulder diameter inner ring
D1
504.0 mm
Shoulder diameter outer ring
E
520.5 mm
Raceway diameter outer ring
s
14.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
5.0 mm
Chamfer dimension
mass
110.0 kg
Product net weight
