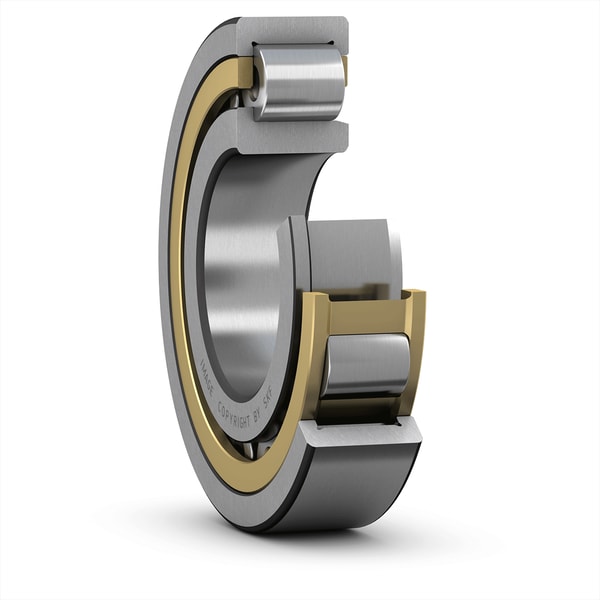

SKF NJ 1024 ML/C3
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
180.0 mm
Outside diameter
B
28.0 mm
Width
d1
141.0 mm
Shoulder diameter of inner ring
D1
159.7 mm
Shoulder diameter of outer ring
D1
159.0 mm
Shoulder diameter of outer ring
F
135.0 mm
Raceway diameter of inner ring
r1,2
2.0 mm
Chamfer dimension
r1,2
2.0 mm
Chamfer dimension
r3,4
2.0 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
3.8 mm
Permissible axial displacement
mass
2.51 kg
Product net weight
