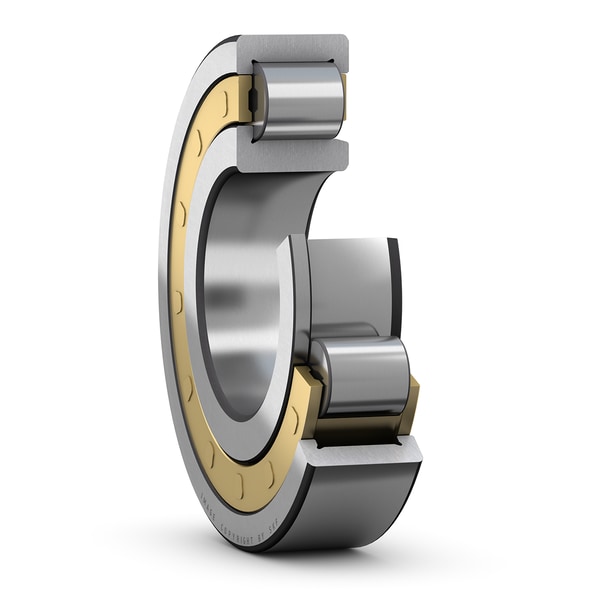

SKF NJ 1896 MA
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
480.0 mm
Bore diameter
D
600.0 mm
Outside diameter
B
56.0 mm
Width
d1
522.0 mm
Shoulder diameter of inner ring
D1
561.0 mm
Shoulder diameter of outer ring
F
511.0 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
s
4.0 mm
Permissible axial displacement
mass
39.2 kg
Product net weight
