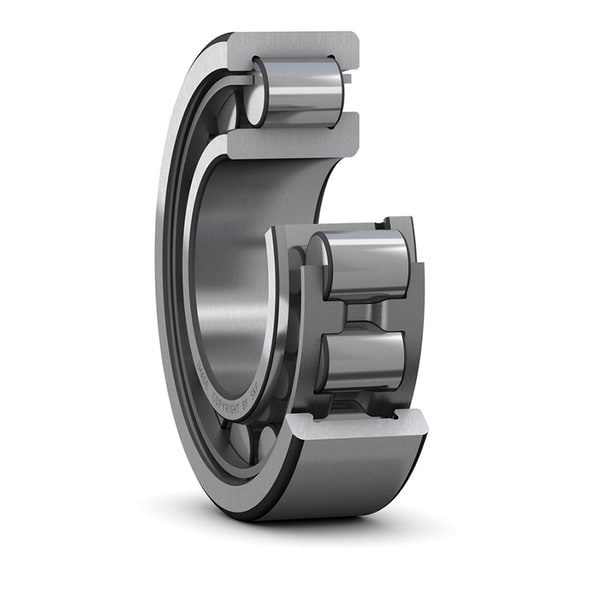

SKF NJ 208 ECJ
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
40.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
18.0 mm
Width
d1
54.0 mm
Shoulder diameter of inner ring
D1
67.4 mm
Shoulder diameter of outer ring
F
49.5 mm
Raceway diameter of inner ring
r1,2
1.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
1.4 mm
Permissible axial displacement
mass
0.389 kg
Product net weight
