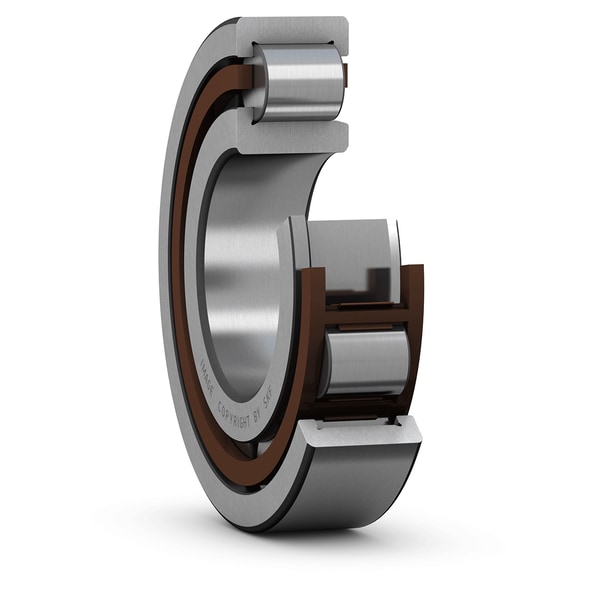

SKF NJ 2203 ECP
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
17.0 mm
Bore diameter
D
40.0 mm
Outside diameter
B
16.0 mm
Width
d1
25.0 mm
Shoulder diameter of inner ring
D1
32.35 mm
Shoulder diameter of outer ring
F
22.1 mm
Raceway diameter of inner ring
r1,2
0.6 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
s
1.5 mm
Permissible axial displacement
mass
0.093 kg
Product net weight
