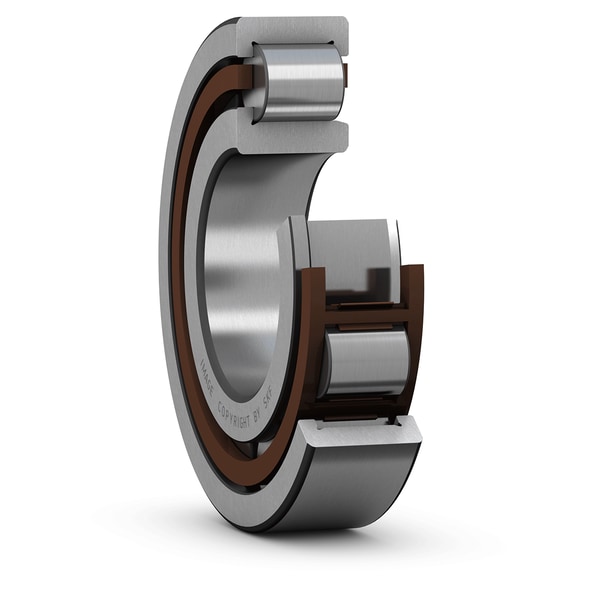

SKF NJ 2204 ECP
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
18.0 mm
Width
d1
29.7 mm
Shoulder diameter of inner ring
D1
38.3 mm
Shoulder diameter of outer ring
F
26.5 mm
Raceway diameter of inner ring
r1,2
1.0 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
s
2.0 mm
Permissible axial displacement
mass
0.143 kg
Product net weight
