SKF NJ 2205 ECP

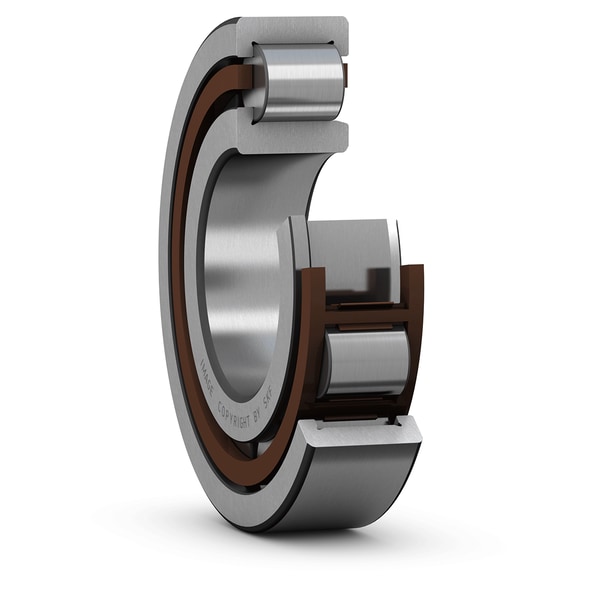

Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
25.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
18.0 mm
Width
d1
34.7 mm
Shoulder diameter of inner ring
D1
43.3 mm
Shoulder diameter of outer ring
F
31.5 mm
Raceway diameter of inner ring
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
1.8 mm
Permissible axial displacement
mass
0.166 kg
Product net weight
