SKF NJ 221 ECML

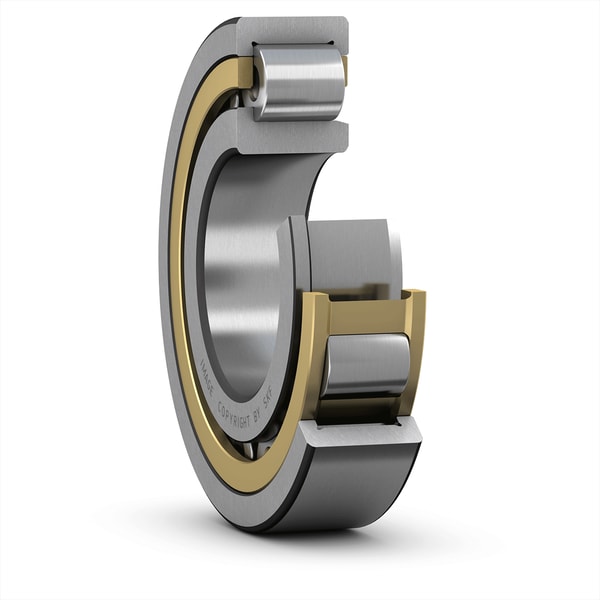

Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
105.0 mm
Bore diameter
D
190.0 mm
Outside diameter
B
36.0 mm
Width
d1
134.0 mm
Shoulder diameter of inner ring
D1
165.0 mm
Shoulder diameter of outer ring
F
125.0 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
2.0 mm
Permissible axial displacement
mass
4.48 kg
Product net weight
