SKF NJ 2220 ECP

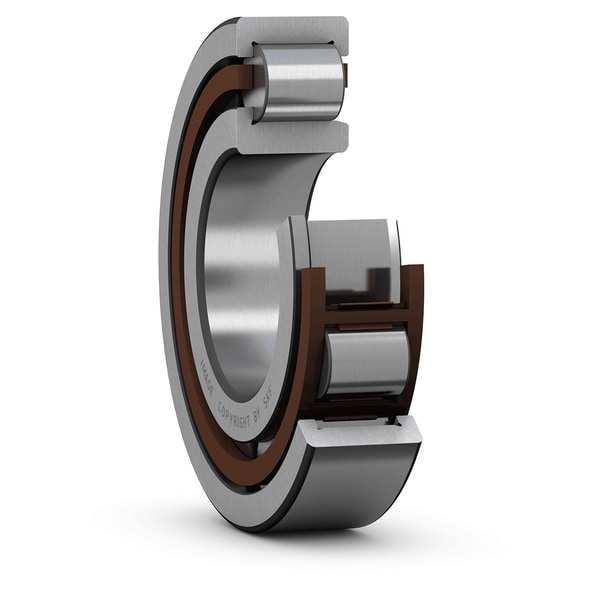

Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
100.0 mm
Bore diameter
D
180.0 mm
Outside diameter
B
46.0 mm
Width
d1
127.0 mm
Shoulder diameter of inner ring
D1
155.6 mm
Shoulder diameter of outer ring
F
119.0 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
2.5 mm
Permissible axial displacement
mass
4.82 kg
Product net weight
