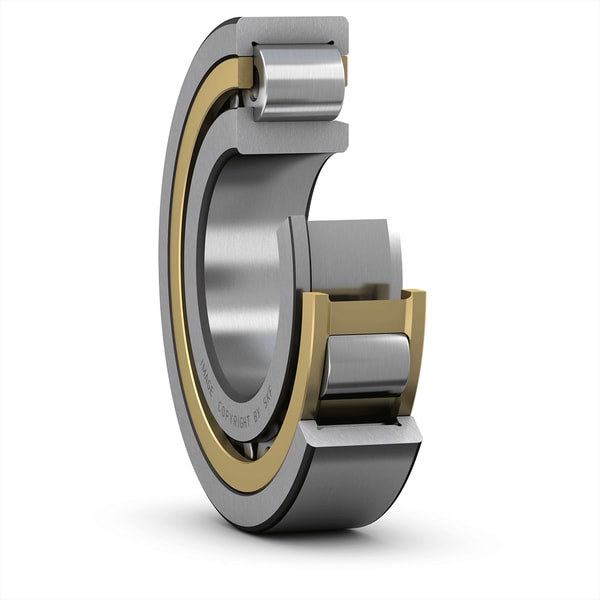

SKF NJ 2244 ECML
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
220.0 mm
Bore diameter
D
400.0 mm
Outside diameter
B
108.0 mm
Width
d1
278.0 mm
Shoulder diameter of inner ring
D1
350.0 mm
Shoulder diameter of outer ring
F
259.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
r3,4
4.0 mm
Chamfer dimension
s
7.9 mm
Permissible axial displacement
mass
60.2 kg
Product net weight
