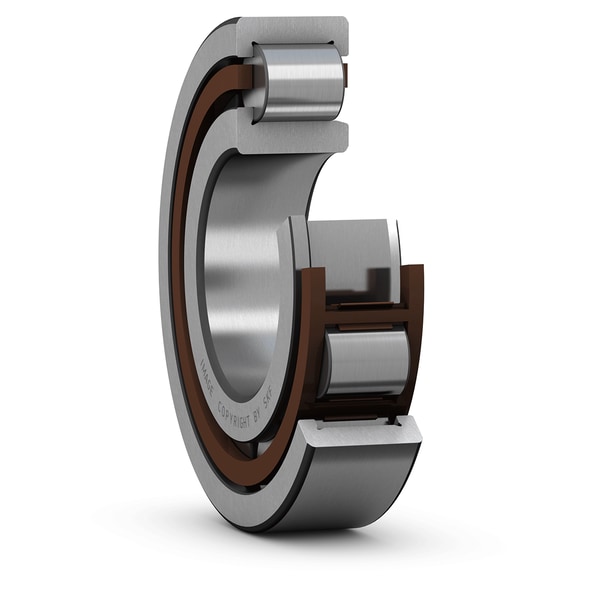

SKF NJ 2304 ECP
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
20.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
21.0 mm
Width
d1
31.2 mm
Shoulder diameter of inner ring
D1
41.85 mm
Shoulder diameter of outer ring
F
27.5 mm
Raceway diameter of inner ring
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
1.9 mm
Permissible axial displacement
mass
0.217 kg
Product net weight
