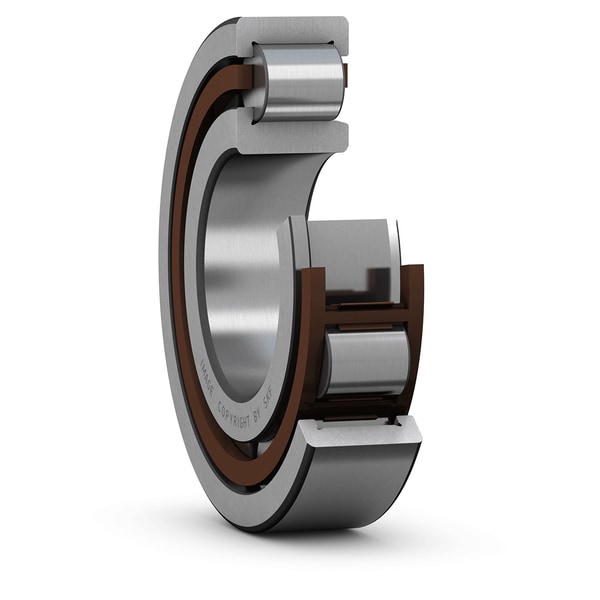

SKF NJ 2317 ECP
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
85.0 mm
Bore diameter
D
180.0 mm
Outside diameter
B
60.0 mm
Width
d1
117.0 mm
Shoulder diameter of inner ring
D1
151.45 mm
Shoulder diameter of outer ring
F
108.0 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
5.8 mm
Permissible axial displacement
mass
7.01 kg
Product net weight
