SKF NJ 2318 ECJ

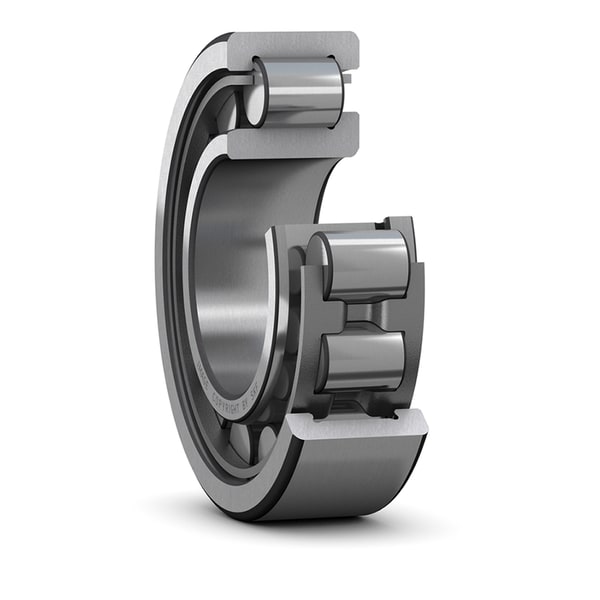

Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
D
190.0 mm
Outside diameter
B
64.0 mm
Width
d1
124.0 mm
Shoulder diameter of inner ring
D1
160.25 mm
Shoulder diameter of outer ring
F
113.5 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
6.0 mm
Permissible axial displacement
mass
8.27 kg
Product net weight
