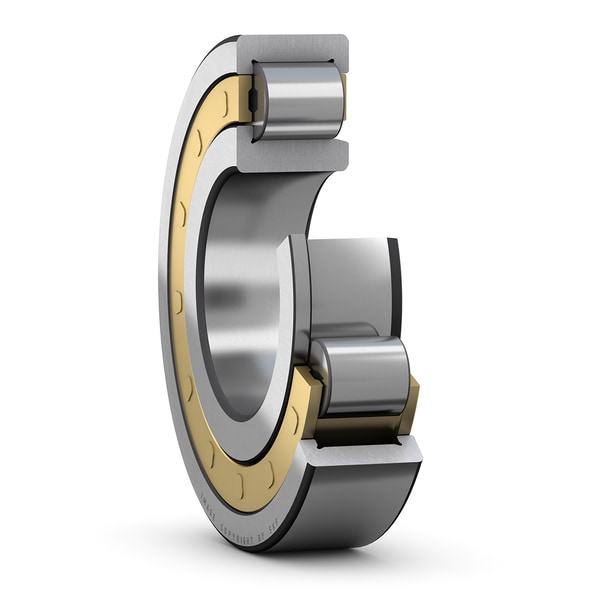

SKF NJ 232 ECM
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
160.0 mm
Bore diameter
D
290.0 mm
Outside diameter
B
48.0 mm
Width
d1
206.0 mm
Shoulder diameter of inner ring
D1
248.8 mm
Shoulder diameter of outer ring
F
195.0 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
2.7 mm
Permissible axial displacement
mass
14.4 kg
Product net weight
