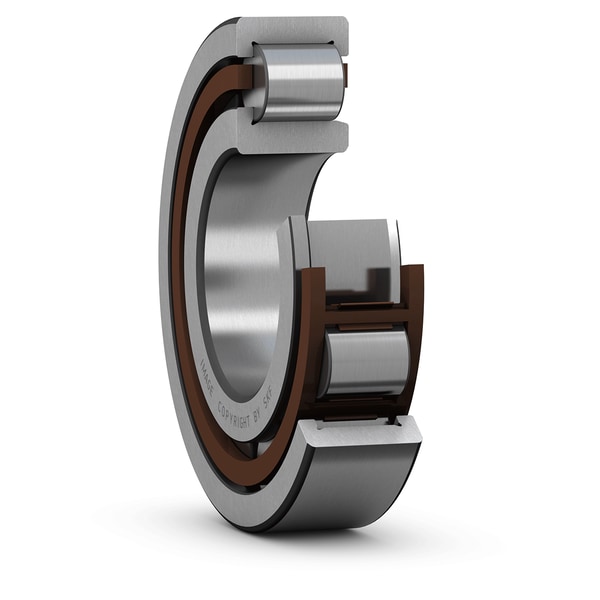

SKF NJ 305 ECP
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
17.0 mm
Width
d1
38.1 mm
Shoulder diameter of inner ring
D1
50.25 mm
Shoulder diameter of outer ring
F
34.0 mm
Raceway diameter of inner ring
r1,2
1.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
1.3 mm
Permissible axial displacement
mass
0.238 kg
Product net weight
