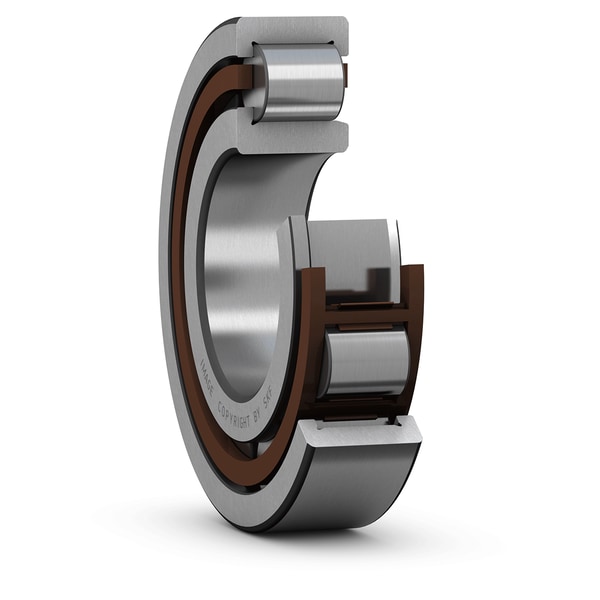

SKF NJ 318 ECP
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
90.0 mm
Bore diameter
D
190.0 mm
Outside diameter
B
43.0 mm
Width
d1
124.0 mm
Shoulder diameter of inner ring
D1
160.3 mm
Shoulder diameter of outer ring
F
113.5 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
2.5 mm
Permissible axial displacement
mass
5.47 kg
Product net weight
