SKF NJ 319 ECJ

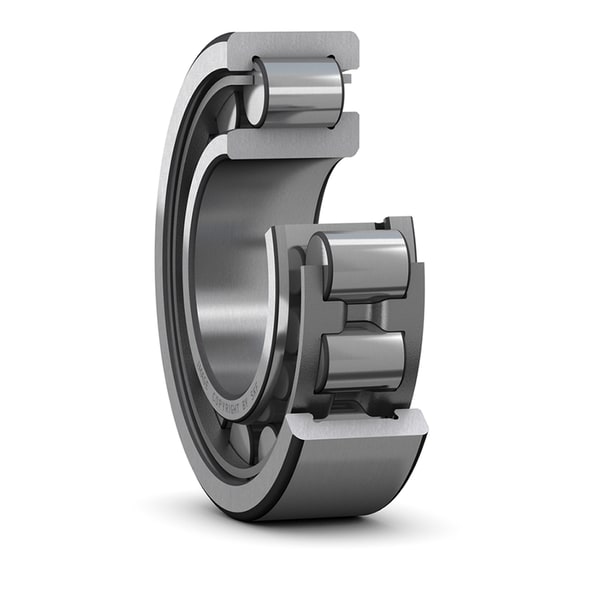

Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
95.0 mm
Bore diameter
D
200.0 mm
Outside diameter
B
45.0 mm
Width
d1
132.0 mm
Shoulder diameter of inner ring
D1
168.45 mm
Shoulder diameter of outer ring
F
121.5 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
2.9 mm
Permissible axial displacement
mass
6.32 kg
Product net weight
