SKF NJ 320 ECM

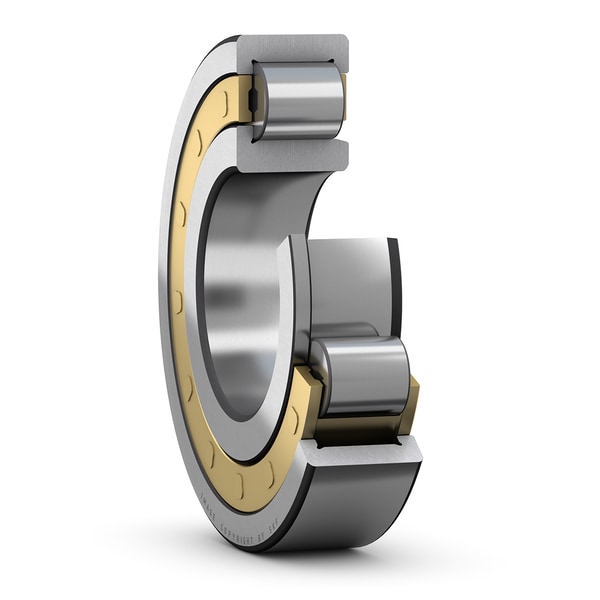

Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
100.0 mm
Bore diameter
D
215.0 mm
Outside diameter
B
47.0 mm
Width
d1
139.0 mm
Shoulder diameter of inner ring
D1
181.25 mm
Shoulder diameter of outer ring
F
127.5 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
2.9 mm
Permissible axial displacement
mass
8.68 kg
Product net weight
