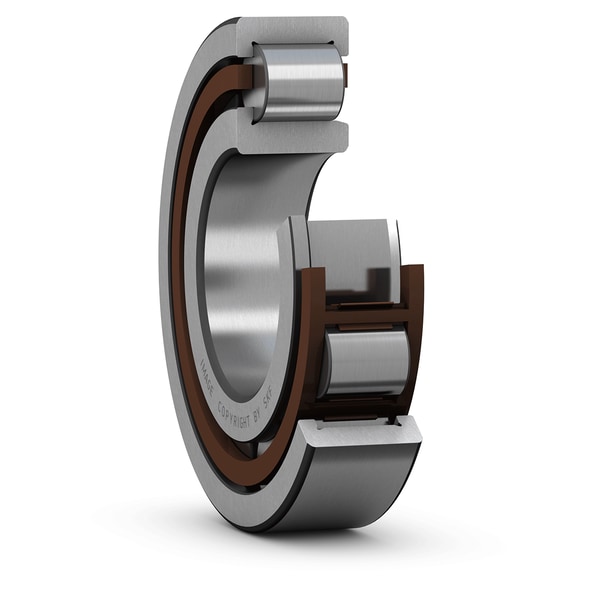

SKF NJ 321 ECP
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
105.0 mm
Bore diameter
D
225.0 mm
Outside diameter
B
49.0 mm
Width
d1
145.0 mm
Shoulder diameter of inner ring
D1
189.0 mm
Shoulder diameter of outer ring
F
133.0 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
3.4 mm
Permissible axial displacement
mass
9.02 kg
Product net weight
