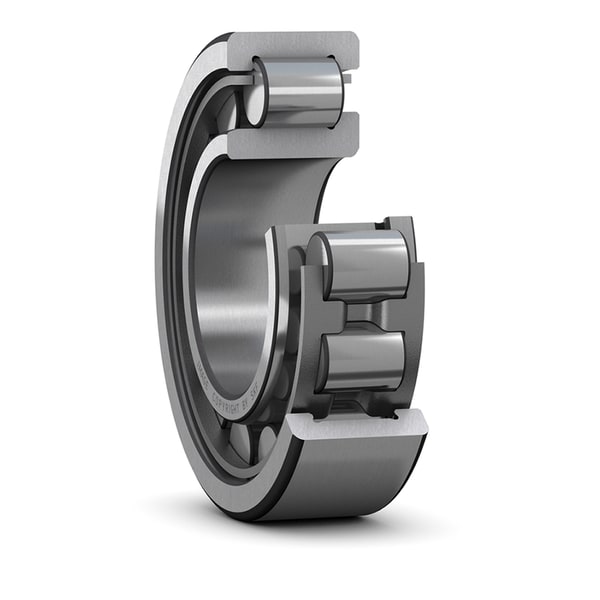

SKF NJ 326 ECJ
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
280.0 mm
Outside diameter
B
58.0 mm
Width
d1
181.0 mm
Shoulder diameter of inner ring
D1
234.15 mm
Shoulder diameter of outer ring
F
167.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
r3,4
4.0 mm
Chamfer dimension
s
3.7 mm
Permissible axial displacement
mass
16.4 kg
Product net weight
