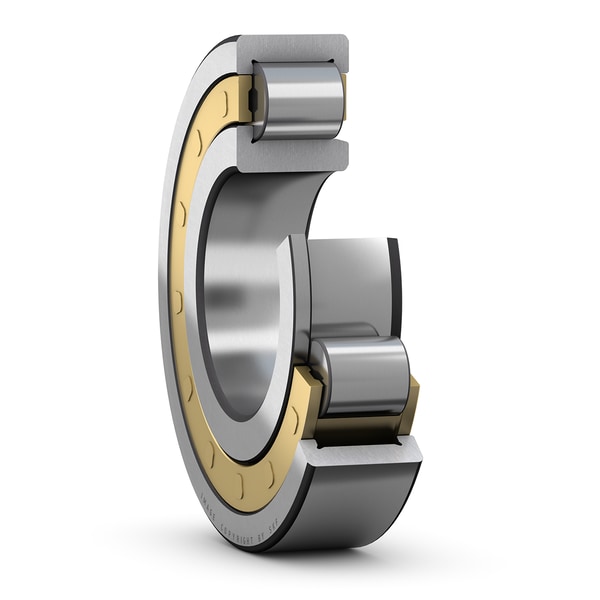

SKF NJ 330 ECM
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
150.0 mm
Bore diameter
D
320.0 mm
Outside diameter
B
65.0 mm
Width
d1
209.0 mm
Shoulder diameter of inner ring
D1
269.7 mm
Shoulder diameter of outer ring
F
193.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
r3,4
4.0 mm
Chamfer dimension
s
4.0 mm
Permissible axial displacement
mass
27.7 kg
Product net weight
