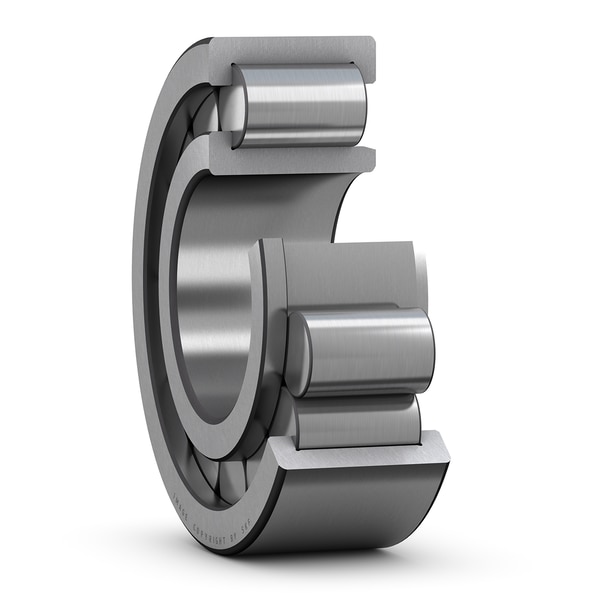

SKF NJG 2305 VH
Single row full complement cylindrical roller bearing, NJG design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
24.0 mm
Width
d1
36.1 mm
Shoulder diameter inner ring
D1
48.2 mm
Shoulder diameter outer ring
F
31.74 mm
Raceway diameter inner ring
s
1.7 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
1.1 mm
Chamfer dimension
mass
0.381 kg
Product net weight
