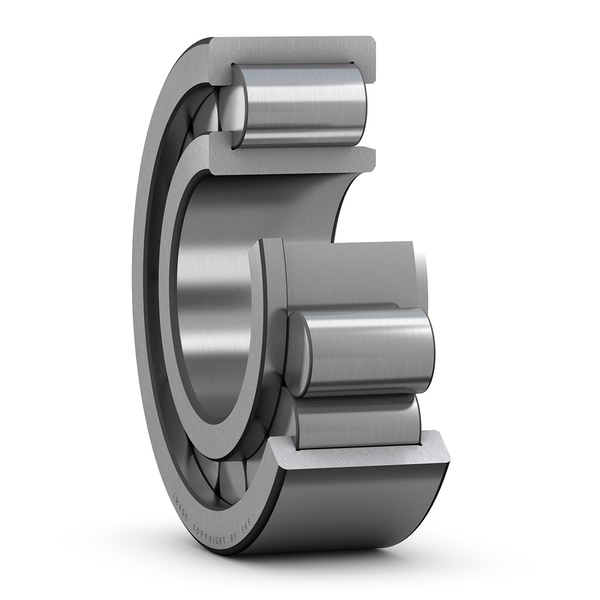

SKF NJG 2313 VH
Single row full complement cylindrical roller bearing, NJG design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
65.0 mm
Bore diameter
D
140.0 mm
Outside diameter
B
48.0 mm
Width
d1
89.9 mm
Shoulder diameter inner ring
D1
116.0 mm
Shoulder diameter outer ring
F
80.7 mm
Raceway diameter inner ring
s
3.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
2.1 mm
Chamfer dimension
mass
3.56 kg
Product net weight
