SKF NKX 10 TN

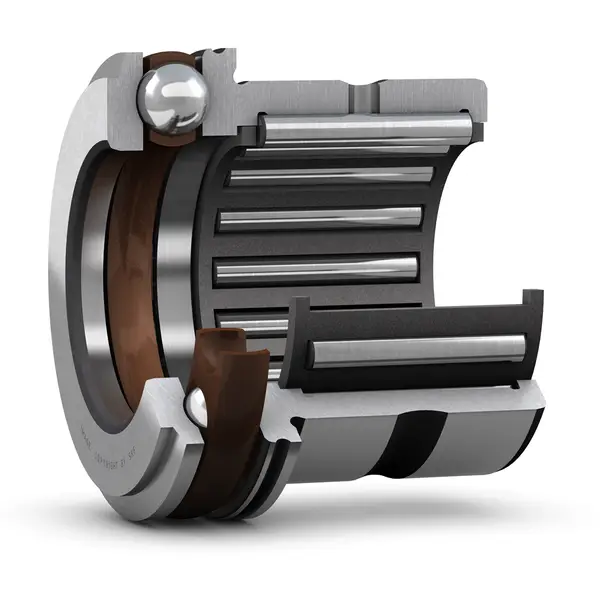

Combined needle roller / thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
Fw
10.0 mm
Diameter under rollers
D
19.0 mm
Outside diameter
C
23.0 mm
Width
C1
9.0 mm
Width of thrust part
C1
6.5 mm
Distance side face to lubrication hole
d
10.0 mm
Bore diameter of thrust part
D1
24.1 mm
Diameter of flange
r1,2
0.3 mm
Chamfer dimension
mass
0.034 kg
Product net weight
