SKF NKX 60 Z

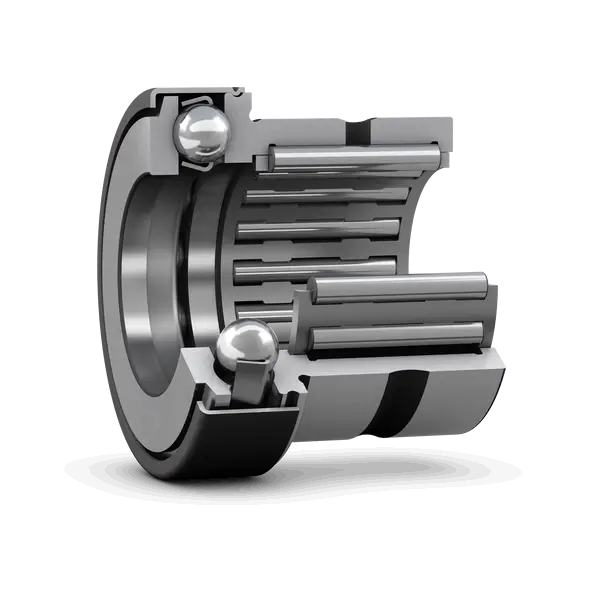

Combined needle roller / thrust ball bearing with a cover
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
Fw
60.0 mm
Diameter under rollers
D
72.0 mm
Outside diameter
C
40.0 mm
Width
C1
17.0 mm
Width of thrust part
C1
12.0 mm
Distance side face to lubrication hole
d
60.0 mm
Bore diameter of thrust part
D2
86.5 mm
Diameter of stamped steel cover
r1,2
1.0 mm
Chamfer dimension
mass
0.47 kg
Product net weight
