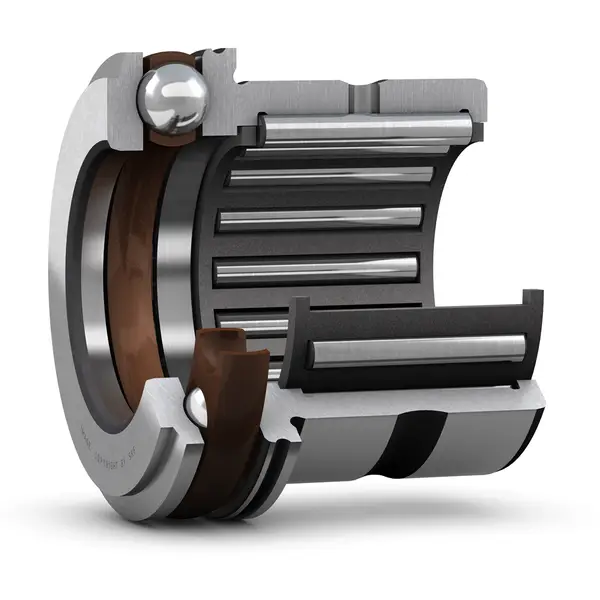

SKF NKX 60
Combined needle roller / thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
Fw
60.0 mm
Diameter under rollers
D
72.0 mm
Outside diameter
C
40.0 mm
Width
C1
17.0 mm
Width of thrust part
C1
12.0 mm
Distance side face to lubrication hole
d
60.0 mm
Bore diameter of thrust part
D1
85.2 mm
Diameter of flange
r1,2
1.0 mm
Chamfer dimension
mass
0.44 kg
Product net weight
