SKF NKXR 17 Z

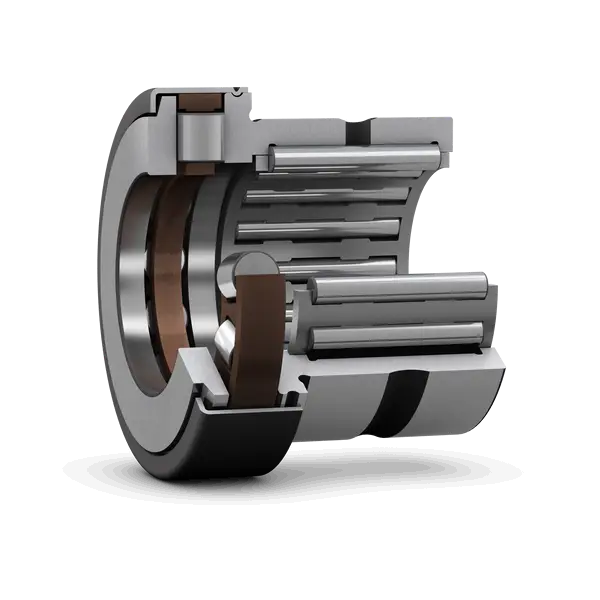

Combined needle roller / cylindrical roller thrust bearing with a cover
Dimensions
NKXR 17 Z Combined Needle Roller Bearing Overview
The SKF NKXR 17 Z belongs to the combined needle roller bearing series and is described as a combined needle roller / cylindrical roller thrust bearing with a cover. It is listed within the combined needle roller bearing category.
What type of bearing is the NKXR 17 Z?
The NKXR 17 Z is an SKF combined needle roller / cylindrical roller thrust bearing with a cover, intended for use where this combined bearing configuration is specified.
NKXR 17 Z Dimensions and Product Data
- Fw: 17.0 mm
- Diameter under rollers, D: 26.0 mm
- Outside diameter, C: 25.0 mm
- Width, C1: 9.0 mm
- Width of thrust part, C1: 8.0 mm
- Distance side face to lubrication hole, d: 17.0 mm
- Bore diameter of thrust part, D2: 31.2 mm
- Diameter of stamped steel cover, r1,2: 0.3 mm chamfer dimension
- Mass: 0.053 kg
What dimensions are provided for the NKXR 17 Z?
The supplied data lists Fw 17.0 mm, diameter under rollers 26.0 mm, outside diameter 25.0 mm, width 9.0 mm, thrust-part width 8.0 mm, lubrication-hole distance 17.0 mm, thrust-part bore diameter 31.2 mm, and a 0.3 mm chamfer dimension for the stamped steel cover.
NKXR 17 Z Additional Technical Information
The product data identifies the bearing as an SKF combined needle roller bearing and provides a limiting speed value of 8500.0 r/min. The stated product net weight is 0.053 kg.
What speed value is recorded for the NKXR 17 Z?
The supplied product data records 8500.0 r/min for the NKXR 17 Z. Because no further operating conditions or ratings are provided, suitability should be checked against the relevant bearing specification or application requirements.
