SKF NKXR 50

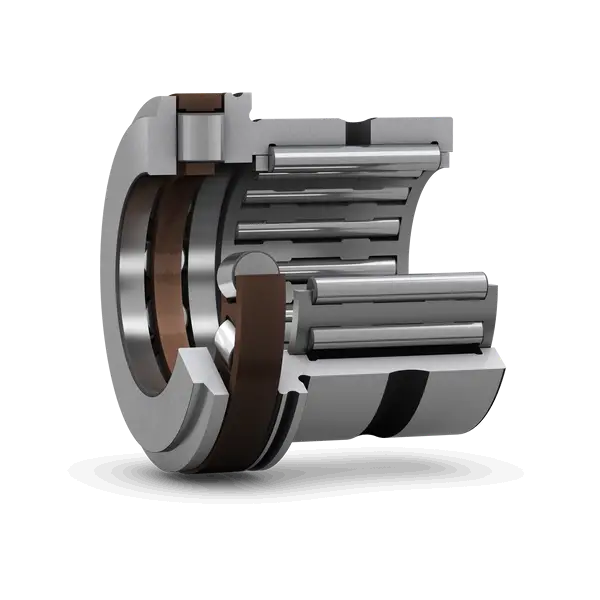

Combined needle roller / cylindrical roller thrust bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
Fw
50.0 mm
Diameter under rollers
D
62.0 mm
Outside diameter
C
35.0 mm
Width
C1
14.0 mm
Width of thrust part
C1
10.0 mm
Distance side face to lubrication hole
d
50.0 mm
Bore diameter of thrust part
D1
70.2 mm
Diameter of flange
r1,2
0.6 mm
Chamfer dimension
mass
0.27 kg
Product net weight
