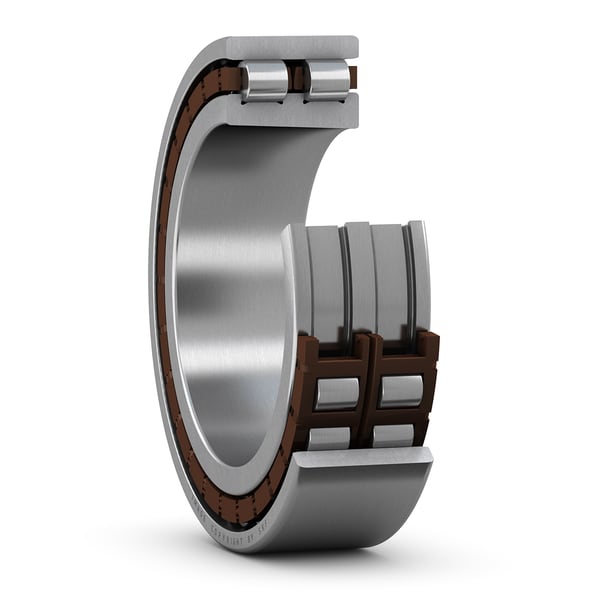

SKF NN 3006 KTN/VQ497
Super-precision double row cylindrical roller bearing with tapered bore
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
D
55.0 mm
Outside diameter
B
19.0 mm
Width
d1
40.1 mm
Shoulder diameter inner ring (NN design)
E
48.5 mm
Raceway diameter outer ring (NN design)
r1,2
1.0 mm
Chamfer dimension outer ring
r3,4
0.6 mm
Chamfer dimension inner ring (bearing with tapered bore)
s
1.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
mass
0.179 kg
Product net weight
Abutment dimensions
da
35.0 mm
Abutment diameter shaft
Da
49.0 mm
Abutment diameter housing
Da
50.0 mm
Abutment diameter housing
ra
1.0 mm
Fillet radius
dn
47.8 mm
Oil nozzle position (not for variants with TNHA cage)
