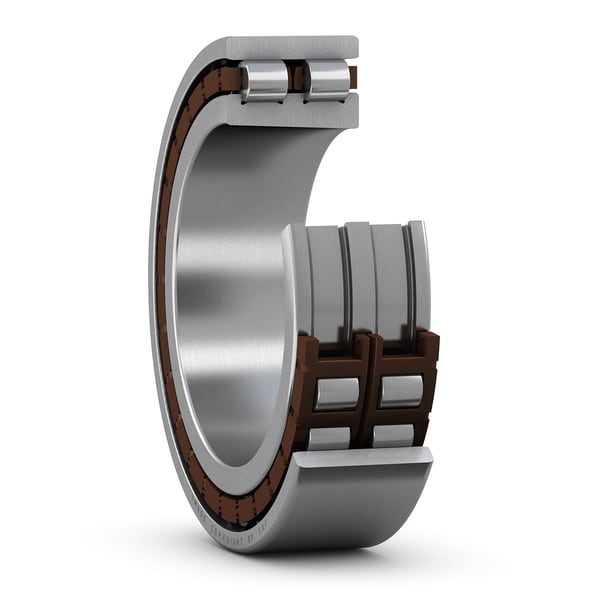

SKF NN 3010 TN/SP
Super-precision double row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
23.0 mm
Width
d1
61.3 mm
Shoulder diameter inner ring (NN design)
E
72.5 mm
Raceway diameter outer ring (NN design)
r1,2
1.0 mm
Chamfer dimension outer ring
s
1.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
mass
0.41 kg
Product net weight
Abutment dimensions
da
55.0 mm
Abutment diameter shaft
Da
74.0 mm
Abutment diameter housing
Da
75.0 mm
Abutment diameter housing
ra
1.0 mm
Fillet radius
dn
71.3 mm
Oil nozzle position (not for variants with TNHA cage)
