SKF NN 3016 TN/SPC2W33
Super-precision double row cylindrical roller bearing with lubrication feature
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
80.0 mm
Bore diameter
D
125.0 mm
Outside diameter
B
34.0 mm
Width
d1
97.0 mm
Shoulder diameter inner ring (NN design)
E
113.0 mm
Raceway diameter outer ring (NN design)
b
5.5 mm
Width annular lubrication groove at outer ring
K
3.0 mm
Diameter lubrication hole (outer ring)
r1,2
1.1 mm
Chamfer dimension outer ring
s
2.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
mass
1.5 kg
Product net weight
Abutment dimensions
da
86.5 mm
Abutment diameter shaft
Da
114.0 mm
Abutment diameter housing
Da
118.5 mm
Abutment diameter housing
ra
1.0 mm
Fillet radius
dn
111.3 mm
Oil nozzle position (not for variants with TNHA cage)

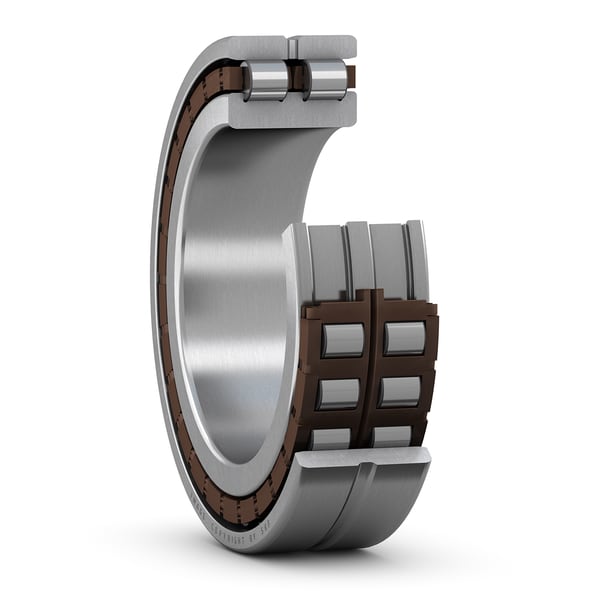

SKF NN 3016 TN/SPC2W33 Super-Precision Cylindrical Roller Bearing
What is the basic identity of this bearing?
The NN 3016 TN/SPC2W33 is an SKF super-precision, double row cylindrical roller bearing with a lubrication feature. It belongs to the SKF Super-precision cylindrical roller bearings series and is listed under super-precision bearings in the supplied product category.
Stated Dimensions and Product Specifications
What dimensions and design data are provided?
- Bore diameter d: 80.0 mm
- Outside diameter D: 125.0 mm
- Width B: 34.0 mm
- Shoulder diameter, inner ring d1: 97.0 mm
- Raceway diameter, outer ring E: 113.0 mm
- Annular lubrication groove width b: 5.5 mm
- Lubrication hole diameter K: 3.0 mm
- Outer ring chamfer dimension r1,2: 1.1 mm
- Permissible axial displacement s: 2.0 mm
- Product net weight: 1.5 kg
Abutment Data and Supplied Performance Values
What additional selection data are available?
The supplied data includes abutment and mounting-related dimensions, along with a stated load value and speed values. These values should be used only as presented in the product data:
- Shaft abutment diameter da: 86.5 mm
- Housing abutment diameter Da: 114.0 mm and 118.5 mm, as listed
- Fillet radius ra: 1.0 mm
- Oil nozzle position dn: 111.3 mm; the source notes this is not for variants with a TNHA cage
- Stated value: 119.0 kN
- Speed values: 7000.0 r/min and 8000.0 r/min
