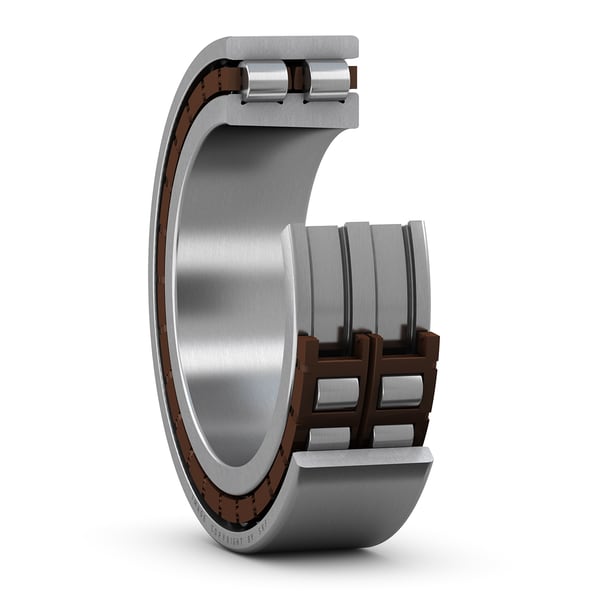

SKF NN 3017 KTN9/SP
Super-precision double row cylindrical roller bearing with tapered bore
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
D
130.0 mm
Outside diameter
B
34.0 mm
Width
d1
102.0 mm
Shoulder diameter inner ring (NN design)
E
118.0 mm
Raceway diameter outer ring (NN design)
r1,2
1.1 mm
Chamfer dimension outer ring
r3,4
0.6 mm
Chamfer dimension inner ring (bearing with tapered bore)
s
2.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
mass
1.54 kg
Product net weight
Abutment dimensions
da
91.5 mm
Abutment diameter shaft
Da
119.0 mm
Abutment diameter housing
Da
123.5 mm
Abutment diameter housing
ra
1.0 mm
Fillet radius
dn
116.4 mm
Oil nozzle position (not for variants with TNHA cage)
