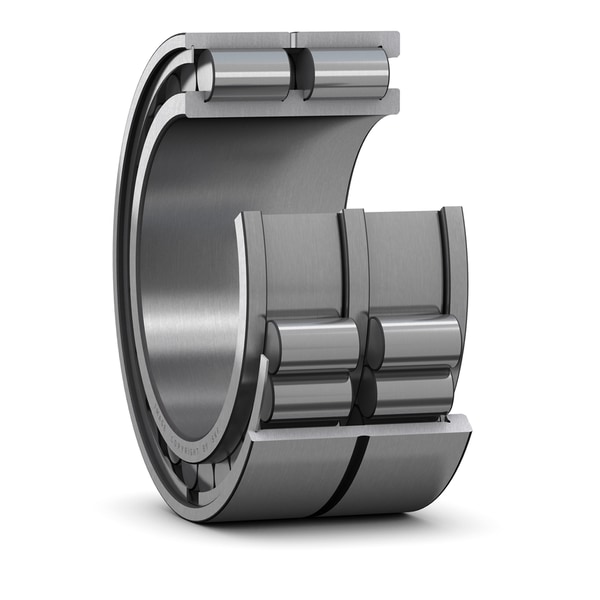

SKF NNCF 5006 CV
Double row full complement cylindrical roller bearing, NNCF design, with relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
55.0 mm
Outside diameter
B
34.0 mm
Width
d1
40.0 mm
Shoulder diameter inner ring
D1
45.5 mm
Shoulder diameter outer ring
b1
4.5 mm
Width annular lubrication groove outer ring
K
3.0 mm
Diameter lubrication hole (outer ring)
s
1.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
1.0 mm
Chamfer dimension (open bearings)
r3,4
0.3 mm
Chamfer dimension
mass
0.348 kg
Product net weight
