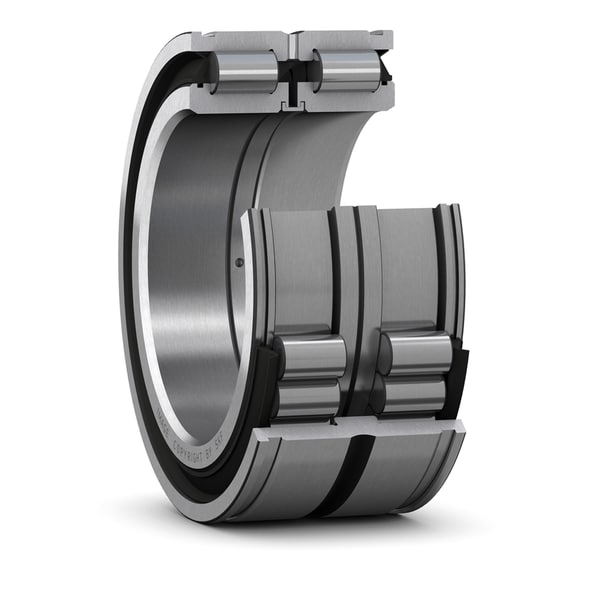

SKF NNF 5024 ADA-2LSV
Double row full complement cylindrical roller bearing, NNF design, with integral sealing and relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
180.0 mm
Outside diameter
B
80.0 mm
Width
C
79.0 mm
Outer ring width (sealed bearing)
d1
141.5 mm
Shoulder diameter inner ring
D3
176.0 mm
Snap ring groove diameter at outer ring
E
164.0 mm
Raceway diameter outer ring
C1
71.2 mm
Distance between two snap ring grooves of the outer ring outside surface
C2
3.9 mm
Distance outer ring side face - snap ring groove (sealed bearing)
b
4.2 mm
Width snap ring groove outer ring
b1
7.0 mm
Width annular lubrication groove outer ring
K
3.5 mm
Diameter lubrication hole (outer ring)
r
1.8 mm
Chamfer dimension (sealed bearing)
r3,4
0.6 mm
Chamfer dimension
mass
6.87 kg
Product net weight
