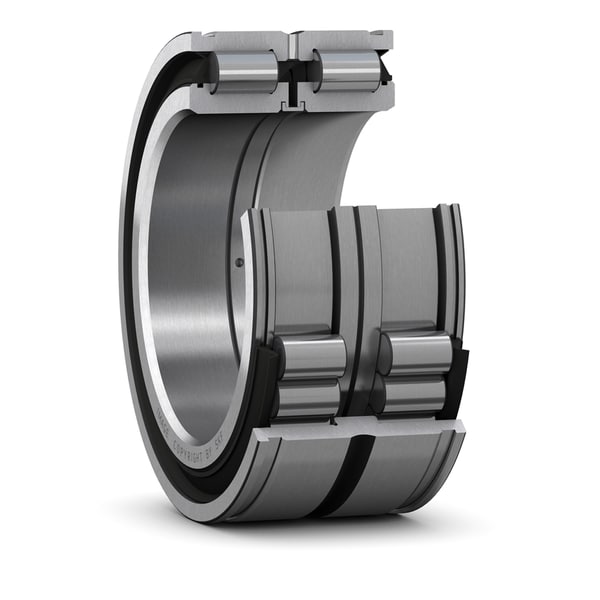

SKF NNF 5040 ADA-2LSV
Double row full complement cylindrical roller bearing, NNF design, with integral sealing and relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
200.0 mm
Bore diameter
D
310.0 mm
Outside diameter
B
150.0 mm
Width
C
149.0 mm
Outer ring width (sealed bearing)
d1
245.0 mm
Shoulder diameter inner ring
D3
304.0 mm
Snap ring groove diameter at outer ring
E
284.0 mm
Raceway diameter outer ring
C1
128.2 mm
Distance between two snap ring grooves of the outer ring outside surface
C2
10.4 mm
Distance outer ring side face - snap ring groove (sealed bearing)
b
6.3 mm
Width snap ring groove outer ring
b1
8.0 mm
Width annular lubrication groove outer ring
K
4.0 mm
Diameter lubrication hole (outer ring)
r
2.0 mm
Chamfer dimension (sealed bearing)
r3,4
0.6 mm
Chamfer dimension
mass
42.0 kg
Product net weight
