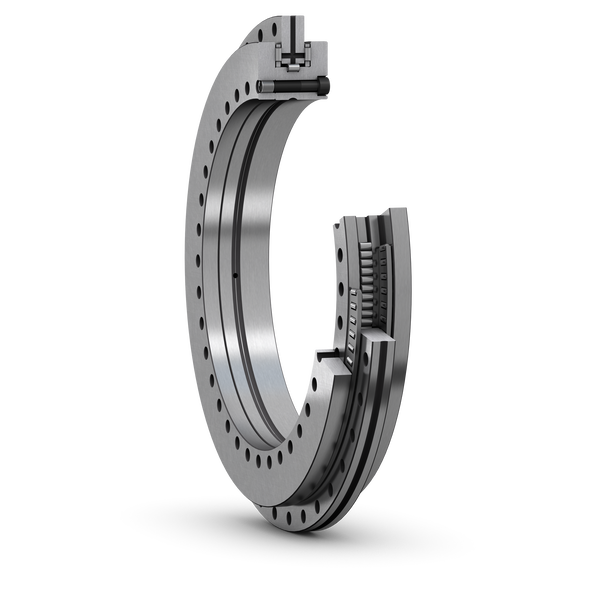

SKF NRT 200 C
Super-precision axial-radial cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
200.0 mm
Bore diameter
D
300.0 mm
Outside diameter
H
45.0 mm
Height
d1
273.8 mm
Shoulder diameter inner ring - large shoulder
C
15.0 mm
Outer ring (housing washer) width
H1
30.0 mm
Distance
J
215.0 mm
Inner ring (shaft/locating washer) hole pitch circle diameter
J1
285.0 mm
Outer ring (housing washer) hole pitch circle diameter
N
7.0 mm
Inner ring (shaft/locating washer) through hole
N1
11.0 mm
Inner ring (shaft washer) sinkhole
N2
7.0 mm
Outer ring (housing washer) through hole
a
6.2 mm
Inner ring (shaft washer) sinkhole depth
r1
0.6 mm
Outer ring (housing washer) chamfer dimension
r2
0.3 mm
Inner ring (shaft/locating washer) chamfer radius
mass
9.47 kg
Product net weight
