SKF NRT 395 C/MAR1A

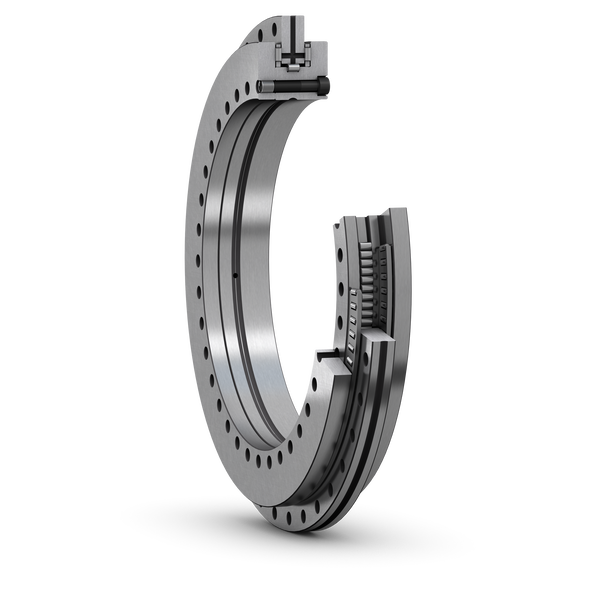

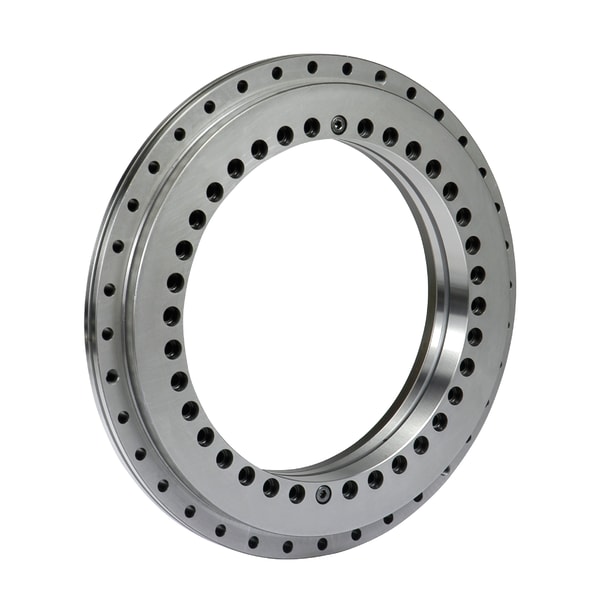

Super-precision axial-radial cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
395.0 mm
Bore diameter
D
525.0 mm
Outside diameter
H
65.0 mm
Height
d1
487.2 mm
Shoulder diameter inner ring - large shoulder
dMS
487.7 mm
Diameter of measuring scale
C
20.0 mm
Outer ring (housing washer) width
H1
42.5 mm
Distance
J
415.0 mm
Inner ring (shaft/locating washer) hole pitch circle diameter
J1
505.0 mm
Outer ring (housing washer) hole pitch circle diameter
N
9.3 mm
Inner ring (shaft/locating washer) through hole
N1
15.0 mm
Inner ring (shaft washer) sinkhole
N2
9.3 mm
Outer ring (housing washer) through hole
a
8.2 mm
Inner ring (shaft washer) sinkhole depth
r1
1.0 mm
Outer ring (housing washer) chamfer dimension
r2
1.0 mm
Inner ring (shaft/locating washer) chamfer radius
mass
32.9 kg
Product net weight
