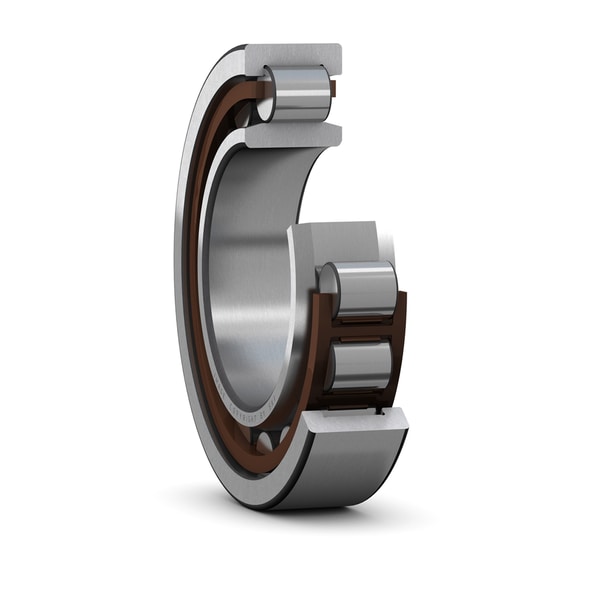

SKF NU 1009 ECPH
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
D
75.0 mm
Outside diameter
B
16.0 mm
Width
D1
65.3 mm
Shoulder diameter of outer ring
F
52.5 mm
Raceway diameter of inner ring
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
0.9 mm
Permissible axial displacement
mass
0.254 kg
Product net weight
